Product Description:

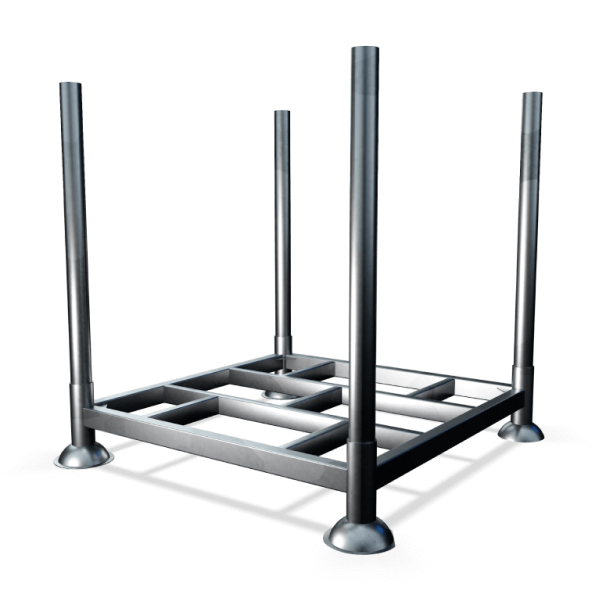

Heavy duty galvanised post pallet with 3 supports to the short dimension and 2 to the long. 60 x 40mm RHS construction to the base. 70mm diameter post sockets. Ideal for the storage and handling of long and large bulk items.

Technical Specifications:

Base Size:
2030 x 1060mm
Overall Height:
4 Post Lengths Available
4 High
Posts – 1000mm, 1220mm, 1500mm, 1800mm
Unit Weight :
43kg (Base Unit Only)
Load Capacity kg:

Industry Usage:

  • Automotive
  • Engineering
  • Logistics
  • Warehousing
Home / Products / Stillages / Large Heavy Duty Post Pallet Stillages

Large Heavy Duty Post Pallet Stillages

More details
Post Length:
1000mm Post Length
Choose Quantity:
We’ll send you a quote summary


Key features

The Palletower range of post pallet stillages consists of four size options: small, medium, large, and standard. Standard matches the size of a traditional wooden pallet.

Base size is 2030 x 1060mm.

The following post length options are available:

  • 1000m – galvanised only.

  • 1220mm – galvanised only.

  • 1500mm – galvanised only.

  • 1800mm – galvanised only.

Load strength

Load strength varies across the different pallet sizes, with a maximum weight capacity per stillage of 800kg to 1000kg.

  • Demountable — Palletower post pallet stillages units are removable.

  • Stackable — Our post pallets can be stacked with or without the posts in place, making them doubly space-efficient: when loaded and when empty.


  • Designed to carry larger, heavier items than box and cage pallets.

  • Large and standard sizes can accommodate a full pallet, whether European or UK size.

  • When loaded and stacked, stored products can be moved on and off with ease without the need to move the stillage — saving your business time.

  • Often used as a semi-permanent storage solution.

  • Posts can be removed and laid flat on the base, so the pallets take up as little storage space as possible when not in use.

  • For return logistics, demountable posts improve vehicle space-efficiency, also reducing transport costs.

  • Large weight capacity, ideal for storing large machinery and bulky parts as well as full pallets.

Industry usage

Space-efficient and versatile, they are widely used in the following industries:

  • Engineering

  • Automotive

  • Warehousing

  • Logistics
