SKU: 19.A118

Four Sided Roll Pallet- Split Gate

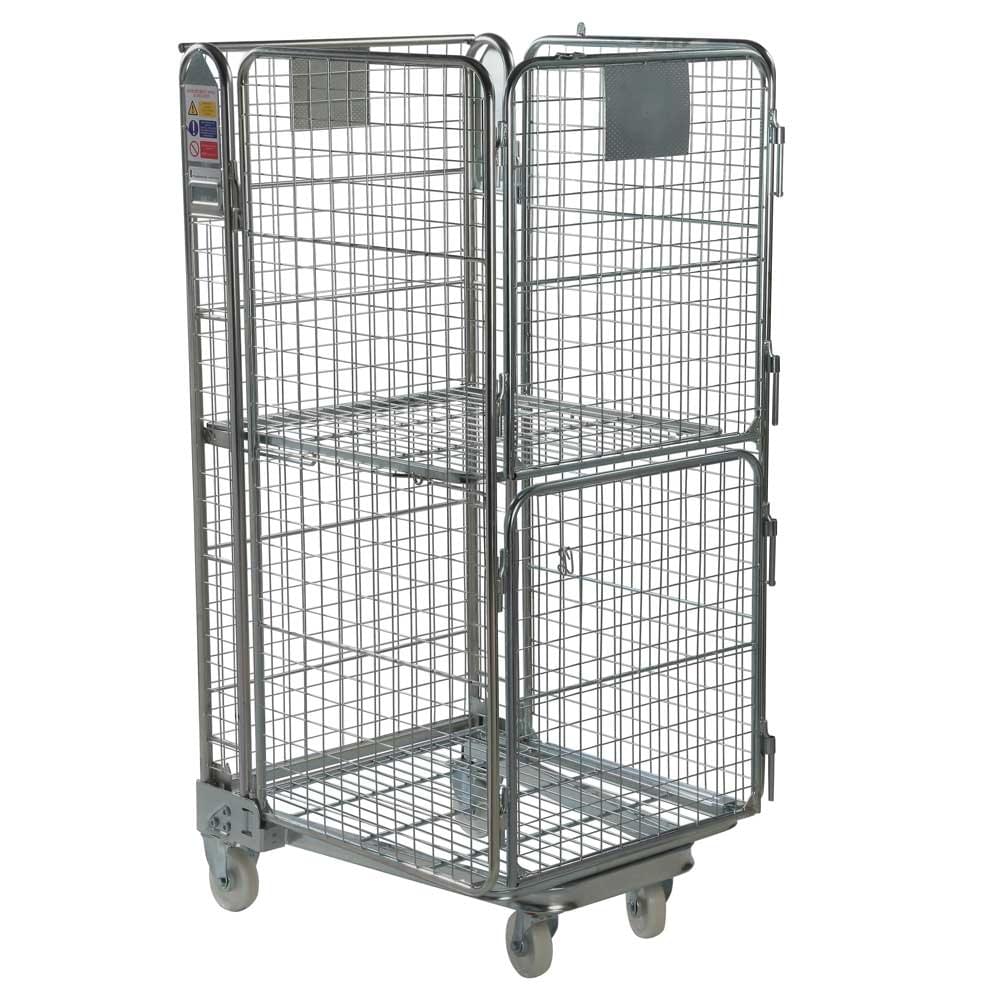

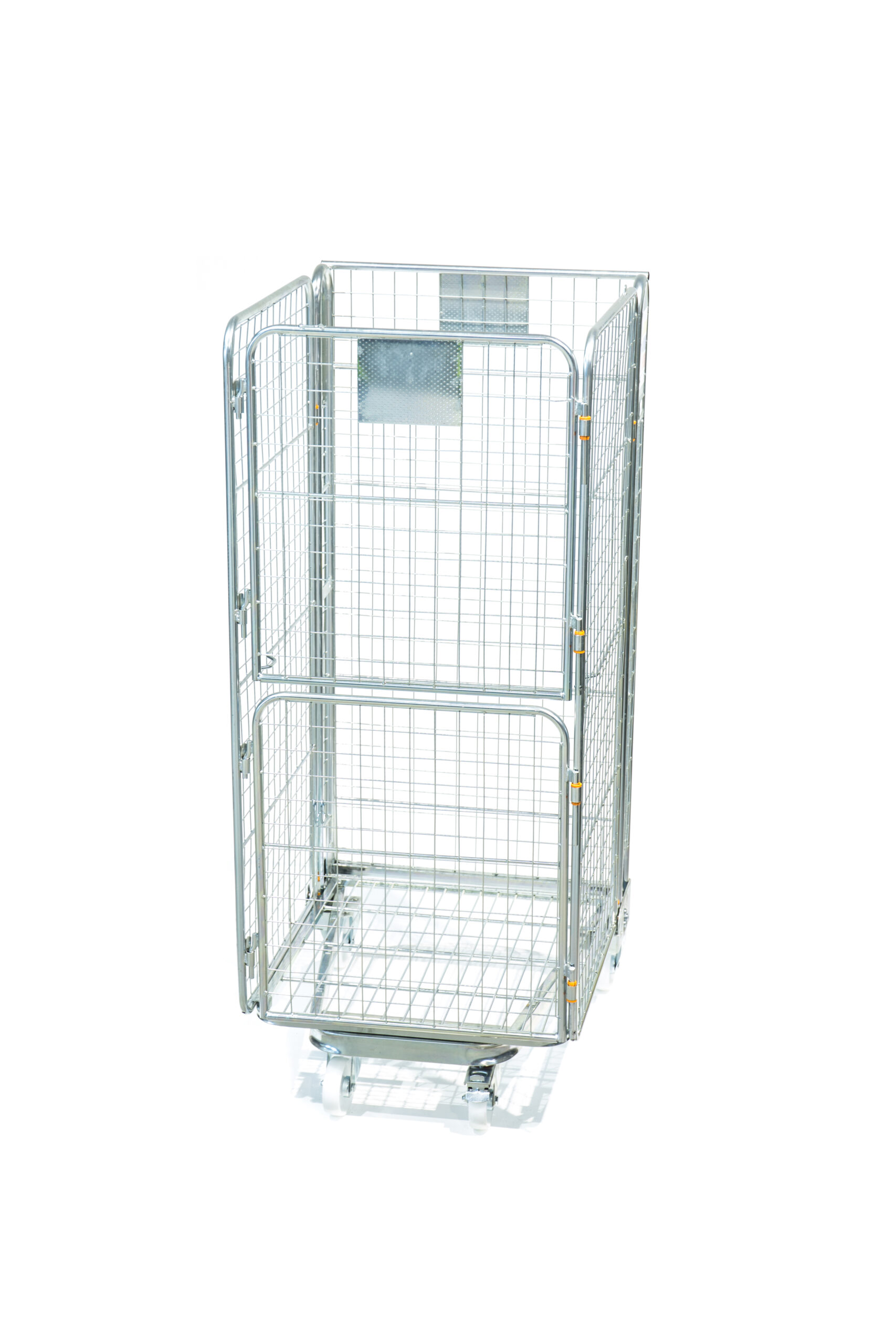

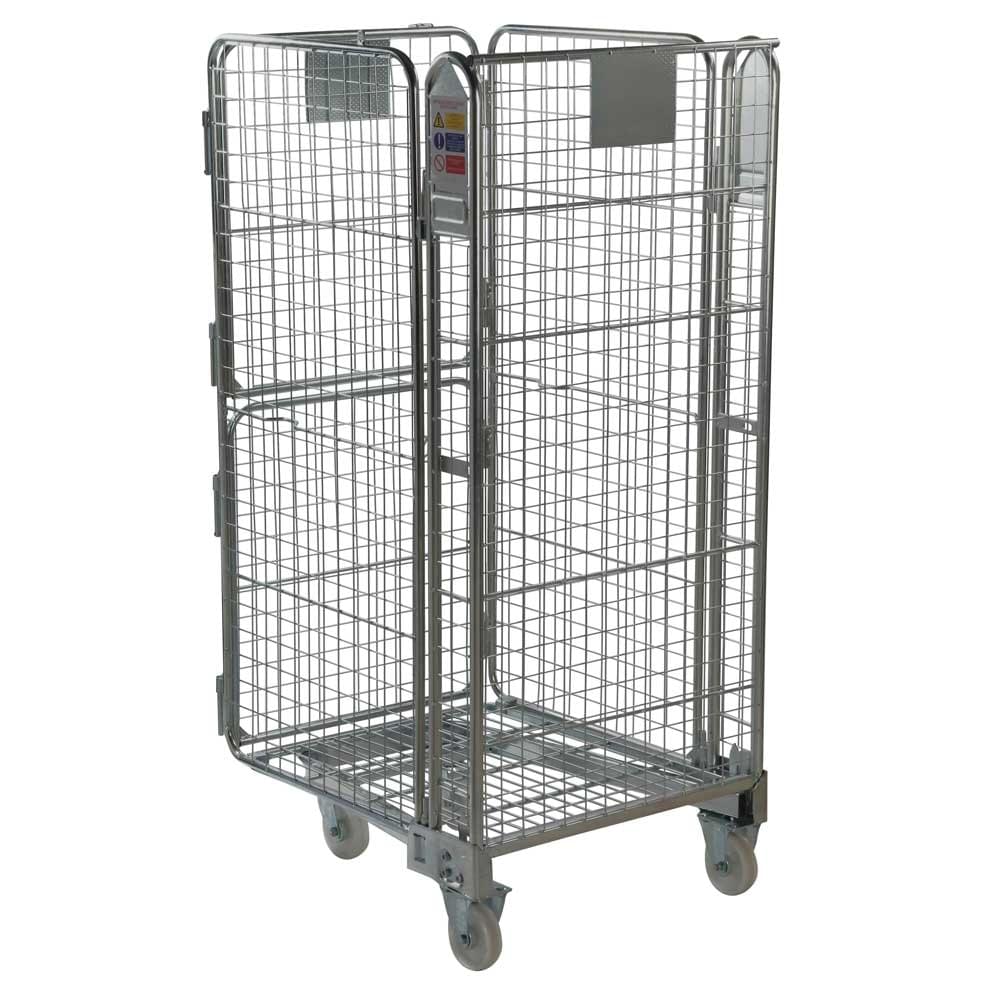

Four sided nestable A frame roll pallet with 50 x 50mm mesh infill to all sides. 2 piece split gate to one short dimension for ease of access. Bright zinc plate finish. Heavy duty market leading design.

  • Specification

  • Base Size

    735 x 850mm
  • Overall Height

    1690mm
  • Internal Height

    1425mm
  • Shelf Option

    Hinged & Loose
  • Style

    Split Front Gate
  • Finish

    Bright Zinc Plate
  • Load Capacity kg

    600kg
  • Castor Diameter

    125mm
  • Side Options

    4 Sided Mesh
Castors
Shelves
Base
Document Holder
Quantity:
1-1011-5051-100100+
  • Specification

  • Base Size

    735 x 850mm
  • Overall Height

    1690mm
  • Internal Height

    1425mm
  • Shelf Option

    Hinged & Loose
  • Style

    Split Front Gate
  • Finish

    Bright Zinc Plate
  • Load Capacity kg

    600kg
  • Castor Diameter

    125mm
  • Side Options

    4 Sided Mesh

Description

Key features

This 4-sided nestable A-frame roll pallet is manufactured from high quality steel and has a bright zinc plate finish. The three sides plus the two-piece split gate have a 50 x 50mm mesh infill structure.

This is a stock item available for immediate despatch.

  • Heavy Duty 25mm steel tube construction to back frame and trombone section for improved strength – the only UK company to offer this as standard from stock.

  • Recessed bolts for ease of loading.

  • Catches secure gates when open to stop swing shut, reduces risk of injury.

  • Noise reducing plastic inserts fitted to all hinges.

  • Kick Bars to rear to prevent mesh damage.

  • ID plate fitted to back panel and front upper gate.

  • Hard wearing nylon castors fitted as standard.

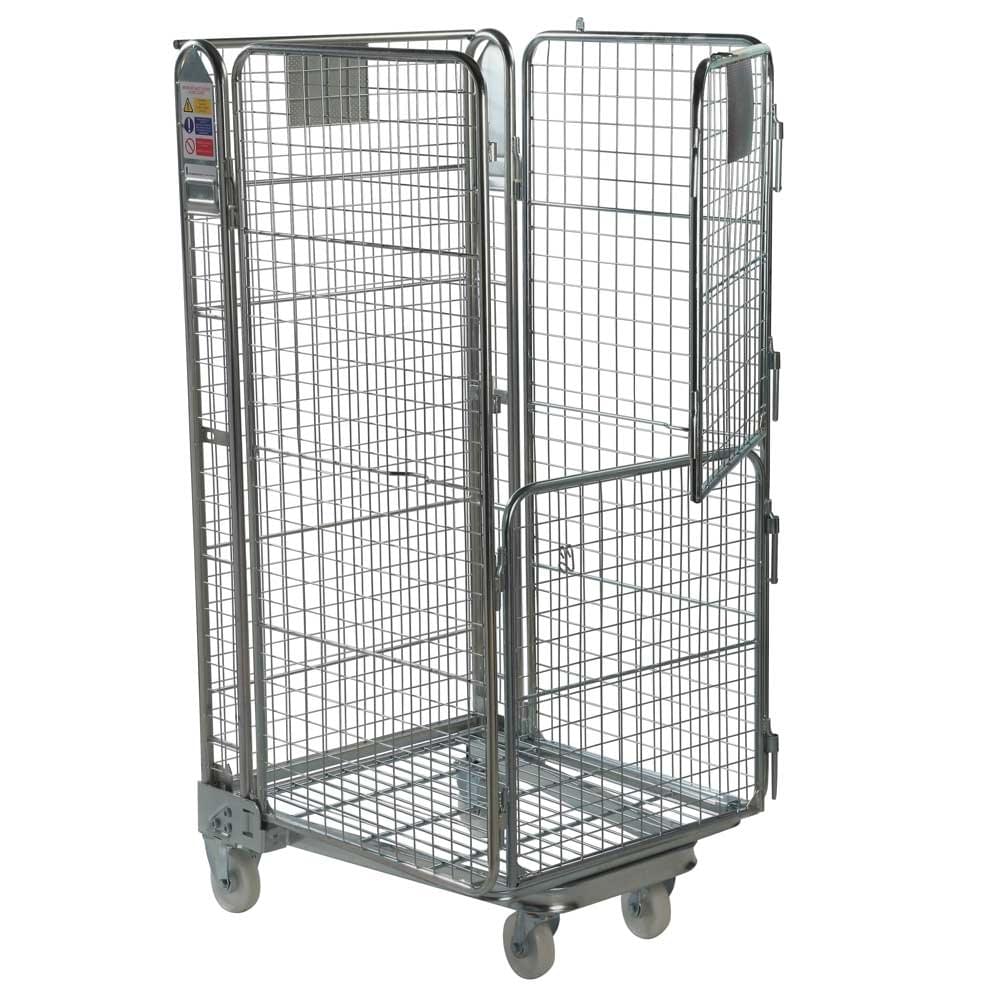

  • Two-piece split stable gate with locating slots for easy closing.

Benefits

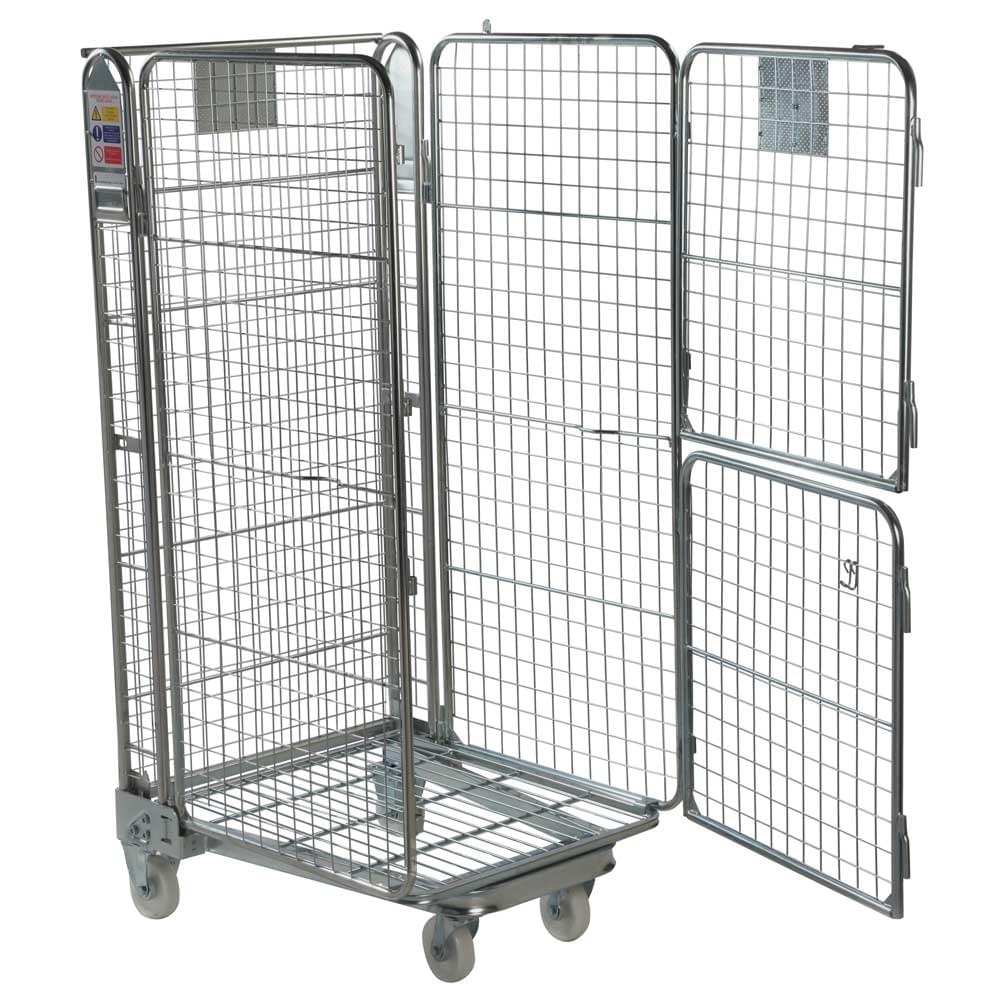

  • Stable door style split gates for easy access to stowed products.

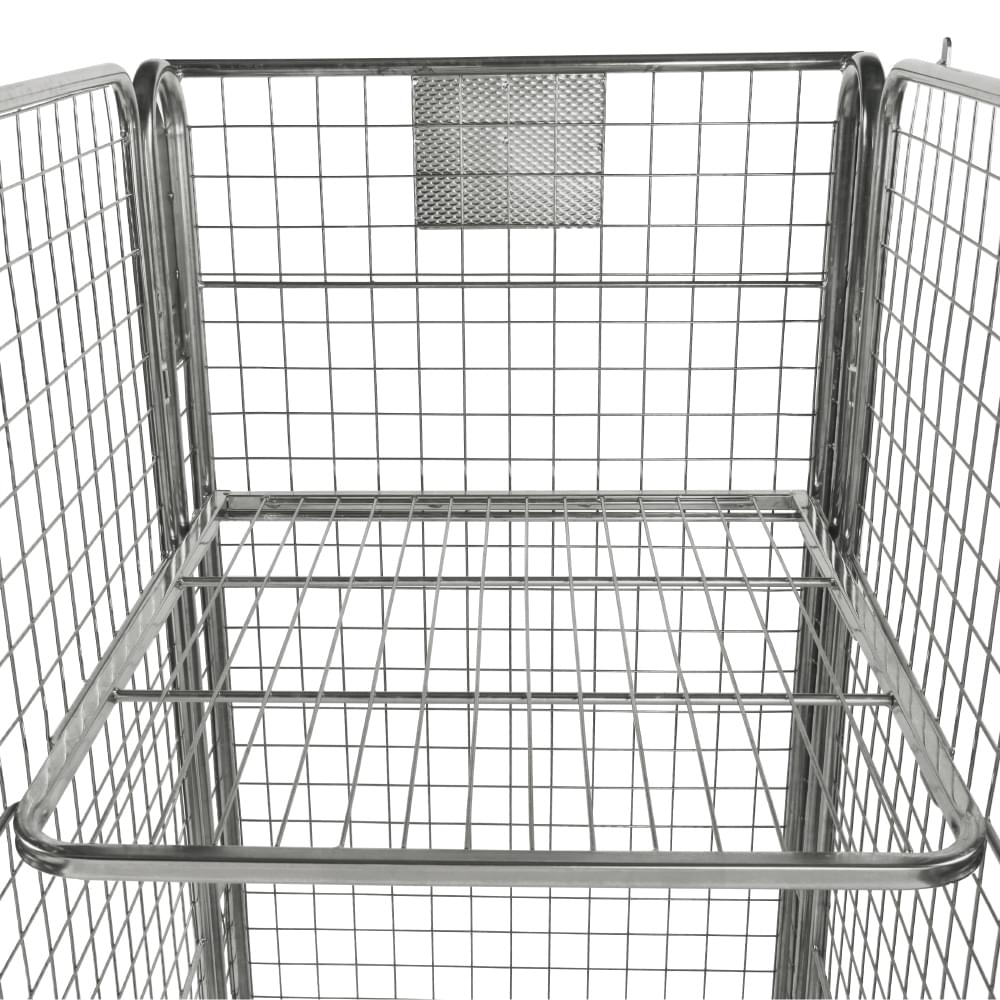

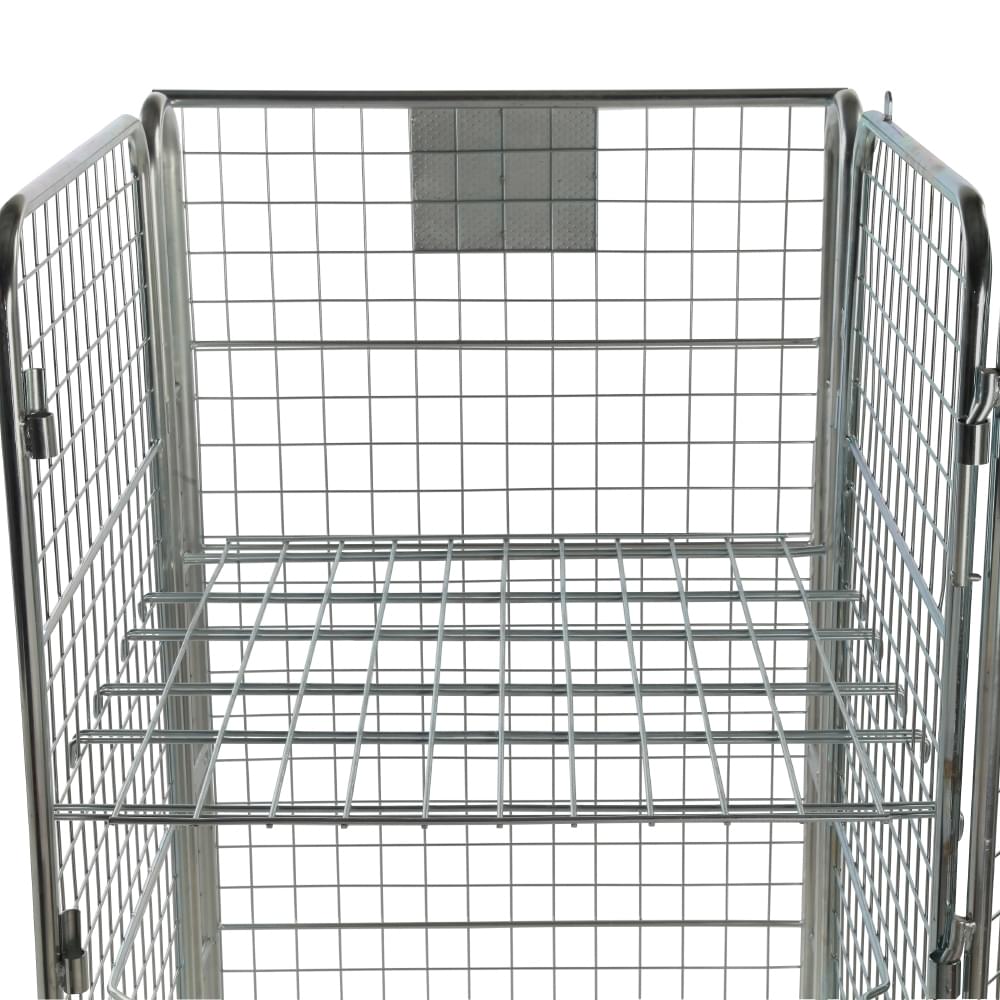

  • Additional shelving improves product segregation and easier loading / unloading.

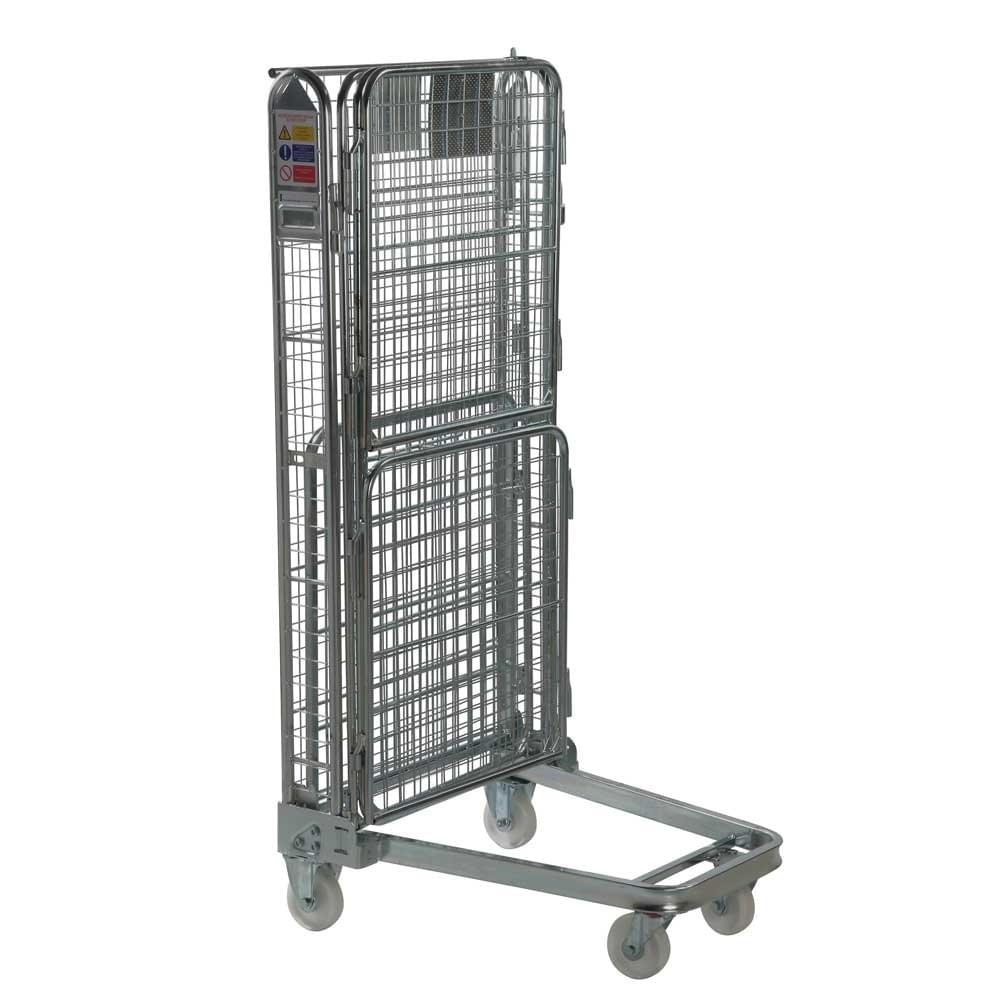

  • Space saving – sides, gate and base fold flush to the back panel allowing for roll cages to nestle together.

  • Excellent RTP (returnable transport packaging) reducing transport costs.

  • Will accommodate two standard size 600 x 400mm Totes side-by-side, up to 3 high.

Industry usage

Mesh security roll containers are commonly used to store, transport, and distribute high-value items across a variety of sectors, such as:

  • Electronics – Enclosed secure storage for high-value hardware during transport and delivery. Optional internal shelf provides vertical space for non-stackable hardware.

  • Pharmaceuticals – Safe storage of drugs and other substances that need constant secure handling. Suitable for use in warehouses and in public-facing areas, e.g., hospital floors and pharmacies.

  • Retail – Secure storage and movement of high-value and fragile goods, e.g., alcohol and perfume. Roll cage pallets make moving goods easy during deliveries, getting valuable stock to a secure indoor location faster.

  • Travel – High-sided storage of excess luggage with access only to authorised personnel. The document holder allows records to be held in each cage for faster location of specific items. This is ideal for busy hotels or airport.
