Home / Products / Roll Pallets and Roll Cages For Sale / Nestable Roll Pallets / Three Sided – Plastic Base Roll Pallet
SKU: 19.A116PB

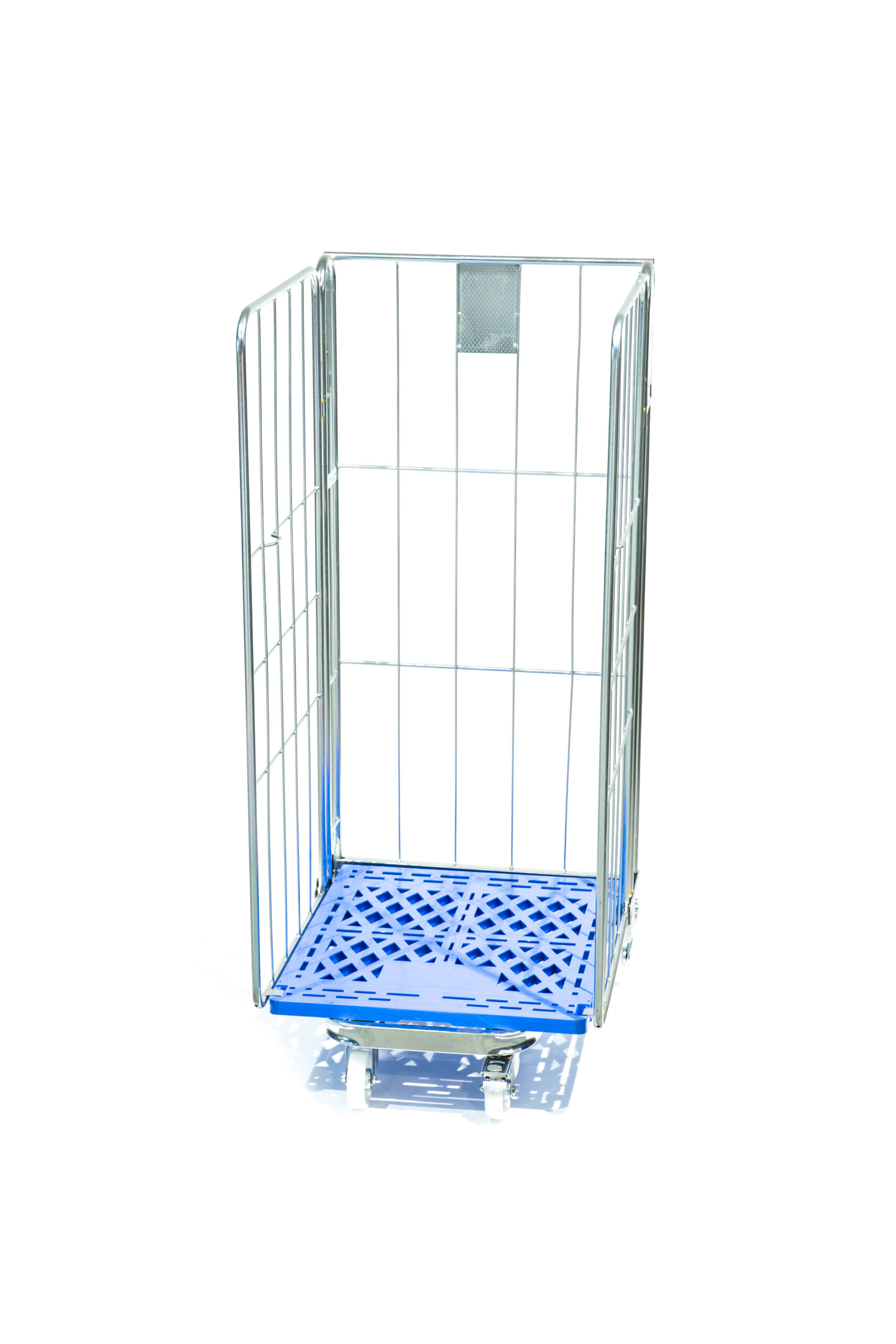

Three Sided - Plastic Base Roll Pallet

Roll Pallets 735x850x1690mm o/h. Reinforced design nestable ‘A’ frame with plastic base. Three sided with rod infill to sides and base. Fitted with two fixed and two swivel 125mm castors. Bright zinc plate finish. Fitted with plastic drop down base.

  • Specification

  • Base Size

    735 x 850mm
  • Overall Height

    1680mm
  • Internal Height

    1425mm
  • Shelf Option

    Hinged & Loose
  • Finish

    Bright Zinc Plate
  • Unit Weight

    38kg
  • Load Capacity kg

    500kg
  • Castor Diameter

    125mm
  • Side Options

    3 Sided
  • Castors

    Multiple options - see below
  • Shelves

    Hinged Shelf, Loose Shelf
Castors
Shelves
Base
Quantity:
1-1011-5051-100100+
  • Specification

  • Base Size

    735 x 850mm
  • Overall Height

    1680mm
  • Internal Height

    1425mm
  • Shelf Option

    Hinged & Loose
  • Finish

    Bright Zinc Plate
  • Unit Weight

    38kg
  • Load Capacity kg

    500kg
  • Castor Diameter

    125mm
  • Side Options

    3 Sided
  • Castors

    Multiple options - see below
  • Shelves

    Hinged Shelf, Loose Shelf

Information

Castor options

  • Braked Rubber Swivel Castors

  • Braked Sandwich Swivel Castors

  • Fixed Rubber Castors

  • Fixed Sandwich Castors

  • Nylon Braked Swivel Castors

  • Nylon Fixed Castors

  • Nylon Swivel Castors

  • Swivel Rubber Castors

  • Swivel Sandwich Castors

Key features

All three sides and base have a rod infill structure, including a hinged plastic drop down base fitted as standard. The roll container is fitted with the larger 125mm diameter castors, two fixed and two swivel, to improve manoeuvrability.

This is a stock item available for immediate despatch.

  • Heavy duty A-frame design.

  • 25mm steel tube construction to back frame and trombone section for improved strength.

  • Will accommodate two standard size 600x400mm Totes side-by-side, up to 3 high.

  • Size: 735 x 850 x 1690mm

  • Easy use, wipe clean, heavy duty plastic base available in three colours

  • Load capacity: 500KG

  • Nestable: makes this unit great for return logistics

  • Market leading heavy duty A-frame design

  • Hard wearing nylon castors fitted as standard

  • Recessed bolts for ease of loading



  • Bright zinc plate finish



  • Noise reducing plastic inserts fitted to all hinges.

Industry usage

3-sided rod infill roll pallets with plastic bases are a popular choice throughout the following industries:

  • Laundry and cleaning industries, providing added protection and cleanliness for delicate linens and fabrics.

  • Hospitality

  • Healthcare

  • Food processing for storage and transportation.
